Manufacturing Industries Flanges
For 30 years we have been a reliable partner and a premium producer of high-quality pumps, valves, and vessel flanges. Our customers count on our care designs that meet the precise requirements of different industries sector and survive the challenges of harsh industrial settings.
Our selection of materials includes carbon steel, stainless steel, alloys, and chrome steel pipe flanges that adhere to ANSI, API, and AWWA standards. These industry-standardized flanges will significantly aid in quality control and protection against life-threatening accidents, especially in the manufacturing industry.
As a committed manufacturer contributing to the manufacturing industry, Texas guarantees the quality and safety of the flanges, following
ASME B16.5 and ANSI B16.5 guidelines. These standards are continuously used in the Food and Beverage sector, along with oil and gas services.
Types of Flange Used in the Manufacturing Industries
Flanges play a crucial role in multiple manufacturing sectors. Different types of flanges are available for specific applications and pressure needs. These are some of the most frequently used flange varieties in the manufacturing industry:
We Are Ready To Help With Your Flange Needs
Features of the Flanges Commonly Used in the Manufacturing Industries
Flange selection ensures safe, clean, and efficient fluid flow in the Manufacturing Industry. Here's a breakdown of the Top Features of Flanges Used in this Industry.
Effortless Breakdown
Swift Disassembly: Socket-weld flanges detach easily, streamlining maintenance and replacement procedures in your manufacturing facility.
Inspection Ready: The single, external weld simplifies access for visual and radiographic inspections.
Minimal Material Removal: Grinding is often unnecessary due to the smooth weld profile, saving time and effort.
Leak-Proof Lockdown
Gasket Seating: Many flanges feature a raised face or groove to accommodate a gasket, ensuring a secure seal that can withstand high pressure without leaking.
Bolting Pattern: Several bolts and nuts equally spread the clamping force, guaranteeing a safe connection.
Welding: The weld neck and socket weld flanges establish a secure, long-lasting connection between the flange and pipe that is resistant to leaks.
Streamlined Connection
Flange Faces: Standardized flange faces, such as raised or flat faces, make it simple to align and switch out flanges of the same type.
Pre-drilled Holes: The flanges have holes already drilled for bolts, which makes assembly easier and ensures correct alignment.
Slip-on Design: These flanges slide easily onto the pipe for fast alignment before welding.
Benefits of Using These Flanges in Manufacturing Industries
Choosing the correct flange in manufacturing delivers durability, easy maintenance, and effective pressure management. Optimal flange selection guarantees reliable performance, which is essential for smooth manufacturing operations. Here's a breakdown of the specific advantages of each flange type

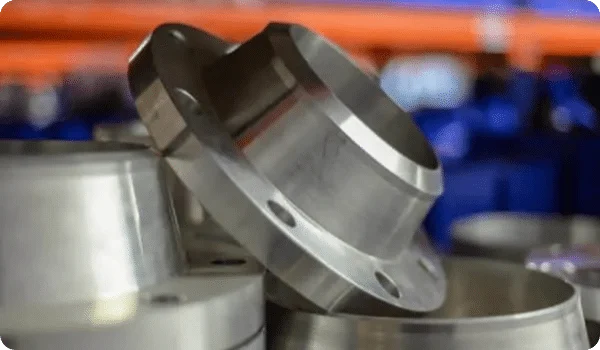

Weld Neck Flanges
Weld-Neck Flanges provide superior strength for high-pressure applications, minimizing stress points and reducing leaks.
-
- They offer unbeatable reliability with consistent wall thickness, tamper-proof connections, and resistance to fatigue and shock loads.
-
- With bidirectional pressure handling, elevated temperature resistance, and corrosion-fighting abilities, these flanges are a cost-effective, maintenance-friendly choice for manufacturing processes.

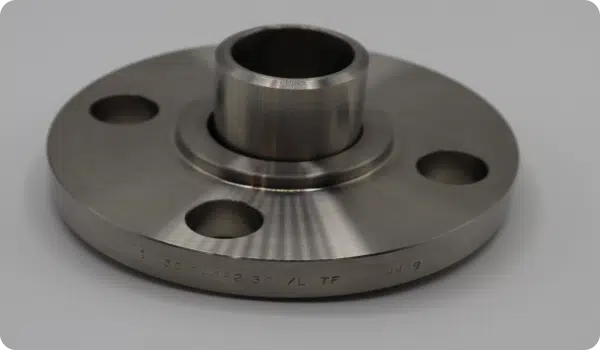

Lap Joint Flanges
Lap joint flanges provide high leak resistance, a double sealing surface, and easy alignment during installation. They are suitable for high-pressure or high-temperature applications.
- They allow for easy dismantling and maintenance, offer good misalignment tolerance, and resist vibrations and thermal expansion.
- Lap joints offer a robust and secure connection with visual verification, minimizing dead space, and are suitable for cleanroom environments.
Threaded Flanges
Threaded flanges offer simple and reliable assembly without special welding tools. They can also be easily disassembled for maintenance, reducing costs.
- Their versatility accommodates various pipe materials and sizes, with a high tolerance for vibrations.
- The tight seal allows for repeated disassembly without compromising performance.
- Threaded flanges are affordable for smaller pipes, easily accessible, and eco-friendly, making them ideal for clean uses and cutting maintenance expenses.

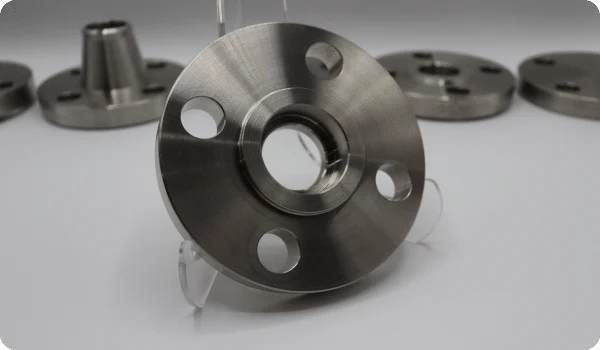

Socket-Weld Flanges
These flanges offer secure connections that resist leaks in high-pressure situations. Their compact design conserves space and simplifies assembly.
- They are affordable, light in weight, and perfect for high temperatures, providing a variety of material choices and enhanced flow.
- Moreover, they have a sleek design, are visually appealing, and need minimal upkeep, making them a sustainable and dependable option for piping systems.
Frequently Asked Questions (FAQs)
Improper flange installation can lead to leaks, ruptures, and even catastrophic failures. Ensuring proper alignment, torque on bolts, and gasket selection is crucial for a safe and reliable piping system.
